ViST Vacuum Triple Shale Shaker for China Drilling Company

BY gnadmin 18 February 2023 shaker screen, Shale Shaker, ViST vacuum shale shaker

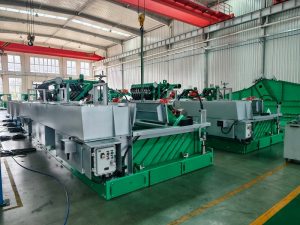

Recently one batch of ViST Vacuum Triple Shale Shaker are ready for shipment to China drilling company. The Features of the ViST vacuum triple shale shaker are as below:
1. The 3 units of ViST vacuum shale shaker are installed on the same skid, to meet the requirement of quick installation and transportation.

2. The ViST vacuum shale shaker can select configuration of 1 set ViST for 1 shale shaker or 1 set ViST for 3 shale shakers.
3. The single shale shaker model is GNZS595J with Splash prevention system to avoid drilling waste splashing on the shale shaker.
4. The 3 single shale shakers are installed on one skid with possum belly, the control panel of the shale shaker are installed on both sides of the possum belly for convenient operation.
GNZJ595H-SHBJ shale shaker is a linear motion shale shaker, normal treating capacity for drilling fluids is 140m3/h, 2ea of explosion proof vibration motors drives the shale shaker and produce vibration G force up to 7.5G, with 5pcs of shaker screen 585x1165mm, the total screen area is 3.4m2, the mechanical deck angle adjustment range while working is -1º~+5º, the deck angle can be adjusted synchronously on both sides. We have different explosion proof standards for option: CNEX, ATEX or IEC EX for option. The shaker screens replacement is very convenient, by ratchet wrench for quick shaker screen disassemble and assemble. The side fluids outlet and bottom fluids outlet is optional , it can be used in different sites.

The ViST vacuum screen can be applied for OBM, SOBM, WBM, the recovery efficiency is up to 30% ~50%, it can be used for mud temperature -15 º to +85 º. It is air operated, no need electricity required.
For more information of ViST vacuum screen, pls consult with GN Solids Control.

GN Showed vacuum pump, shale shaker at Petrotech 2019

BY gnadmin 3 March 2019 centrifugal pump, shaker screen, Shale Shaker, vacuum pump

GN solids control showed our equipments at Petrotech 2019 in India from Feb. 10th to Feb. 12th. The equipments we showed at the oil show in India including:

1) Sludge vacuum pump: it can be used to transfer drilling cuttings, powder cement, waste sludge, oil sludge, drilling fluids, industry waste water, mining tailings, dredging slurry, sand, even for animal waste, etc. Especially for high viscosity sticky oil sludge from refinery crude oil tank bottom, the vacuum pump is an ideal equipments to transfer the oil sludge, but the flow rate will be different with the normal flow rate. Depends on the different conditions oil sludge, we will choose the proper model for our clients according to the question list they filled.

As a 100% air operation pump, the vacuum pump do not need any electricity to operation, this is pretty convenient in some jobsites when electricity is limited, the user can use the air compressor in the jobsite to provide air for the vacuum pump, they can choose automatic operation or manually operation for their requirement.
2) Centrifugal pump: the complete centrifugal pump is consist of pump head, coupler for motor end, coupler for pump end, electric motor, control panel, skid and other accessories. The pump head is the most important components for the centrifugal pump, our pump head and all the parts are interchangeable with world famous brand centrifugal pump.
3) Shale shaker: the 2 panel shale shaker is the smallest model we have now, we have 2 panel, 3 panel and 4 panel single deck shale shaker for option, also we have dual deck shale shaker for special purpose.

1800pcs shaker screens ready for shipment to Asia

BY gnadmin 30 January 2019 shaker screen, solids control

GN solids control will ship 1800pcs shaker screens to our client in Asia after Chinese New Year holiday. All the screens are composite material frame shaker screens, the dimension is 635x1253mm. The screens can be loaded into 2 containers. Our factory will be closed for Chinese New Year holiday from January 29th to February 13th. Pls contact with GN solids control by email freely.

Shaker screens are one of our major products among our products lines. As the professional manufacturer of solids control equipments and drilling waste management, our products line including linear motion shale shaker, mud cleaner, desander, desilter, decanter centrifuge, vacuum degasser, centrifugal degasser, mud gun, mud agitator, centrifugal pump, submersible slurry pump, sludge vacuum pump, mud gas separator, mixing hopper and jet mud mixer, flare ignitor, screw pump, screw conveyor, high G drying shaker, vertical cuttings dryer, mud tank, complete solids control system and drilling cuttings treatment system. Also we can produce cuttings solidification unit, Thermal Desorption Unit, Oil sludge separation unit, chemical dosing unit, and HDD & CBM mud recycling system, TBM desander unit, Solids removal unit, Dredging slurry separation unit.

GN shaker screens are produced in our second factory workshop, every month we shipped thousands of shaker screens to USA, Russia, etc. over 70 countries in the world, most of them is from repeat order for good quality and competitive price. Features of GN composite material shaker screens:
1) All the screens over 60 mesh use 3 layers wire mesh for longer working life.
2) Four sides pre-tensioned shaker screens for reliable working performance.

Solids control equipments shipped to Russia

BY gnadmin 31 December 2018 decanter centrifuge, mud cleaner, shaker screen, Shale Shaker

This week GN solids control shipped one batch of solids control equipments to Russia, the client inspect the equipments in our factory in Beijing before dispatch to Russia. We welcome all the clients to visit our factory before order and after order before delivery.

The solids control equipments they ordered including linear motion shale shaker, mud cleaner, decanter centrifuge, centrifugal degasser, this is their repeat orders since 2017, they keep repeating orders every month during the past years, and make mud tanks system locally. Sometimes they replace the old equipments from their existing rig solids control system.

The shale shaker, mud cleaner, vacuum degasser/ centrifugal degasser, decanter centrifuge are our main products and the most popular products, we have many options for decanter centrifuges with different size from 9 inch to 30inch for different applications, for each bowl size, we have 2 models with different ratio. For 9 inch bowl size centrifuge, we have GNLW224D and GNLW224E-VFD, for 14 inch bowl centrifuge, we have GNLW363C, GNLW363-VFD, GNLW364C-VFD, for 18 inch bowl centrifuge, we have GNLW452, GNLW453C-VFD and GNLW454D-VFD , for 22 inch bowl centrifuge, we have GNLW553C-VFD, GNLW554D-VFD for option, for 30 inch bowl centrifuge, this is the max centrifuge we produced at present, we have GNLW764D-VFD centrifuge, this is mainly for tunneling project which need a huge volume of mud.

The linear motion shale shaker, we have 2 panels, 3 panels, 4 panels and double deck shale shaker for option, all the shaker screens are produced by our own workshop with our brand GN solids control, the composite material shaker screens produced by GN has been approval by many clients in the world for their oil & gas drilling rig.

10 units of shale shaker for India drilling company

BY gnadmin 23 December 2018 centrifugal pump, mud cleaner, shaker screen, Shale Shaker, solids control

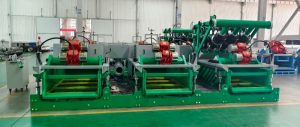

10 units of shale shakers are shipped to India drilling company this week, they also produced one set of solids control shale shaker tank ready for shipment, including 3 units of same model shale shaker, 1 unit of mud cleaner, 1 unit of vacuum degasser, 1 unit of mud gas separator, 2 units of centrifugal pumps, and necessary mud agitators, mud gun, and 1 unit of mud tank.

GNZS703F-HB shale shaker is one of the best sold model shale shaker, with 3 panel composite material frame shaker screens, we produce OEM shaker screens in GN own shaker screens workshop. Except for the OEM shaker screens, we also produce durable composite material shaker screens for world famous brand shale shaker, like Derrick FLC 500 series, FLC 2000 series, hyperpool, D600, etc, Brandt King Cobra / Venom, VSM300, MI-SWACO Mongoose PT,MD 2/3, FSI, etc. Compared with the steel frame shaker screens, GN made composite material shaker screens with 20% larger effective screen area, the working life is much longer, the storage period is up to 5 years.

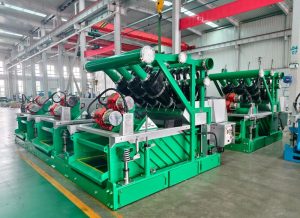

The mud cleaner is the combination of desander cone, desilter cone, underflow shale shaker, the treating capacity is different by using different quantity desander cone and desilter cone. GNZJ703F-1S8N with 500gpm capacity with 1ea desander cone and 8ea desilter cone. GNZJ703F-2S12N with 1000gpm treating capacity with 2ea desander cone and 12ea desilter cone. GNZJ703F-3S16N with 1500 gpm treating capacity. The feeding pump for mud cleaner is GN made centrifugal pump , the parts and installation dimension is 100% interchangeable with world famous brand pump.
