16 Sets Drilling Mud Centrifuge and Vertical Cuttings Dryer for overseas oilfield service company

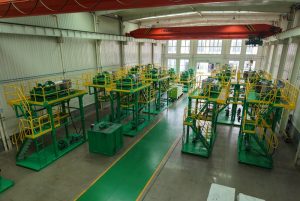

Recently 16 sets of drilling mud centrifuge and vertical cuttings dryer are ready for delivery to overseas oilfield service company.
One set of drilling mud centrifuge package including 1 unit of decanter centrifuge, telescopic skid and 1ea decanter centrifuge feeding pump. GNLW363D decanter centrifuge is the most popular high speed decanter centrifuge used for drilling mud treatment and drilling cuttings treatment. The bowl diameter is 14 inch, the bowl length is 50 inch, the designed treating capacity is 200gpm, and typical capacity is 132 gpm. The max bowl speed is 3900rpm, and typical bowl speed is 3200rpm. The max G force is 3063G, typical G force is 2062G. The separation cut point is 2 ~5 microns.

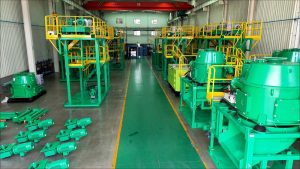

One set of vertical cuttings dryer package including 1 unit of vertical cuttings dryer, cuttings dryer skid, flushing pump and solids discharge system. The most popular vertical cuttings dryer model is GNCD930G, the treating capacity is 30 ~50 tons per hour. For the oil based drilling cuttings fresh collected from primary solids control shale shaker, the treated oil content in the cuttings is less than 5%. If the client needs less oil content in the cuttings, the solids discharged can be sent to Thermal Desorption Unit. The screen diameter is 930mm, we have 0.25mm, 0.35mm, 0.5mm three type screen opening for option. The rotation speed is 900rpm, G force is 420G, oil tank capacity is 48L. The main motor is 55KW, the oil pump motor 0.55KW.The standard vertical cuttings dryer with solids discharge collection hopper, as client’s requirement, GN designed customized solids discharge system with vibration motor for faster solids discharge.


Except for decanter centrifuge package and vertical cuttings dryer package, GN solids control also produce different size screw conveyor, high G drying shaker and complete line of solids control equipments and shaker screens.

GN New Separation Equipment Showroom

Recently GN New Separation Equipment Showroom is officially put into use.
GN Showroom Including Company Profile Module, Industry Application Module, Separation Equipment Display Module, GN Company Profile, GN Certificates, National Level Key Small Giant Company, GN Company Milestone, GN Global Case References, GN Main Separation Equipments, Drilling mud Solids Control Equipments, Waste water Treatment Equipment, Mining Screening Equipment, etc. After visiting the new separation eqiupments showroom, we will invite our clients and partners to visit GN workshop, production machines, technology and more operation videos and global cases. Additionally, there is big space with proper equipment for big mud tank system assembly and commissioning.


As one of the solids control equipments, drilling waste management equipments, shaker screens, mud tank system, various size decanter centrifuge, 3 phase decanter centrifuge, separation equipments manufacturer in China, GN solids control/ GN separation’s new facility is put into use officially in October of 2023. With the new showroom in use, the clients can understand our equipments, technologies and experience more comprehensive, intuitive, and effective.


Main equipments produced by GN solids control:
Linear motion shale shaker, mud cleaner, desander, desilter, drilling mud decanter centrifuge, vacuum degasser, mud agitator, mud tank, centrifugal pump, mixing hopper, shaker screens.
Vertical cuttings dryer, waste treatment decanter centrifuge, dewatering centrifuge, feed pump, screw conveyor, high G drying shaker, chemical dosing unit, Inclined Plate Clarifier.
Drilling waste management system, Oil sludge treatment system, solids control system, HDD mud recycling system, TBM & Piling desander unit, tank cleaning unit, solids removal unit, liquid mud plant, etc.


Additionally, every year GN solids control will participate in professional exhibitions of oil & gas industry in the world and show our lastest products and technology, such as CIPPE, OTC, ADIPEC, etc.


Welcome to contact with GN solids control/ GN separation and visit our new facility and new showroom.

Drilling Rig Solids control equipments spare parts manufacturer in China

As a professional drilling rig solids control equipments manufacturer in China, we provide complete spare parts for our OEM equipments, and also replacement shaker screens for other brand shale shaker. Recently one batch of drilling rig solids control equipments spare parts are ready for maintenance of our solids control equipments. The list of spare parts including:
For Vertical cuttings dryer:


Different opening screen basket with scraper, Bell jar assembly with scraper, Rotor assembly with flights, Gearbox, pulley of power unit, air knife components, belt
The maintenance of the centralized lubrication system of GN vertical cuttings dryer is very easy, the user need to clean the oil tank regularly. If found abnormal, remove the screws at the four corners of the oil tank to separate the oil tank from others, tighten the 4 screws of the upper cover and oil tank. The mud discharged through the screen basket gap contains solid particles, which will damage the screen basket. When the solids layer increased to specific gap, the screen basket need to be replaced, otherwise the drilling cuttings dryness can not meet the technical requirement. Regularly check the wear of screen basket scraper, and adjust the gap between the scraper and the screen basket to keep the gap in a normal range.
For decanter centrifuge：


Hydraulic coupler assembly, Bearing block
For screw conveyor:
Variator, auger drive, hanger shaft


For screw pump:
Stator, rotor, universal joint, gearbox , variable speed gearbox
For VFD control panel, electrical parts and components, such as drives, PLC, pressure gauge, HMI Display unit, etc.
Except for these spare parts, we also produce replacement shaker screens for different brands shale shaker from API 20 to API 325 which comply with API RP 13C standard. If you need solids control spare parts and shaker screens, pls contact GN solids control.

Spring Season, Welcome to Visit GN Solids Control Tangshan Factory

GN Solids Control move to the new third factory to Tangshan in 2023, welcome all the friends, clients from domestic and abroad to visit GN new Tangshan factory in the bright spring season.


This is GN third new factory since the first factory and second factory in Langfang city, also GN Solids Australia is established in 2023 after GN Solids America established in 2023 in Houston, TX.


We will show you around GN separation facility, to introduce our comprehensive range of equipments and separation solutions for different industries and projects for your separation requirement, such as oil and gas industry, mining separation industry, trenchless engineering & construction. Our main products line including:


Solids control equipments & system, as linear motion shale shaker, linear motion mud cleaner, desander, desilter, vacuum degasser, decanter centrifuge, mud gas separator, centrifugal pump, mud agitator, mud gun, mud tank, mixing hopper, shaker screens, submersible slurry pump, etc.
Drilling waste management equipments & system, vertical cuttings dyer, waste decanter centrifuge, high G drying shaker, screw conveyor, sludge vacuum pump


Oil sludge treatment plant
HDD & CBM mud recycling system with 200gpm, 400gpm, 600gpm,800gpm,1000 gpm,1500gpm treating capacity
TBM &Piling slurry separation plant
Mining slurry separation plant
Waste water treatment unit
Dewatering unit with dewatering centrifuge
Mining separation vibrating screen


We will also show our Blanking workshop, welding workshop, CNC machining workshop, Coating workshop, Assembly workshop, outdoor assembly area, office building, our robot welding production line , painting and powder coating production line will be introduced.
During your visit, we will study your customized requirement and provide customized solution for your project, our professional sales engineer team will provide the best pre-sales consulting, after-sales service and good quality equipments & solutions. Also we will take this opportunity to show you our advanced technology and equipments.
Welcome to visit GN solids control in Spring.

Vacuum Degasser and Mud Agitator for China Oilfield Service Company

Several sets of vacuum degasser and mud agitators are ready for delivery to China oil oilfield service company.


GN solids control can provide different types mud agitator for different application, including coupler connection mud agitator, direct connection mud agitator, vertical mud agitator, etc. The gearbox to be used with mud agitator is heavy duty helical bevel type gearbox for reliable operation, especially suitable for heavy mud. We will install different explosion proof standard motor for different project’s requirement, control panel can be optional as client’s requirement, such as IEC EX, ATEX, CNEX, etc. The impeller size and shaft length can be customized as your mud tank dimension.
When the agitator impeller come into contact with the drilling fluids, it forces it to generate vortex motion, thereby preventing the sedimentation of solid particles in the drilling mud, achieving the effect of uniform mixing of solid and liquid phases and consistent density. The connecting plate sandwiched in the middle of the impeller can prevent the solid particles of mud from depositing in the lower part of the impeller after shutdown, thereby reducing the resistance of solid materials to the impeller when starting again, and avoiding the accident of burning the motor due to starting overload. When motor is running, it drives the input shaft of the gearbox to rotate through the rotation of the motor. The output shaft of the gearbox drives the mixing shaft to rotate through a rigid coupling, and the mixing shaft is connected to the impeller through bolts for transmission.
To select proper quantity and model mud agitator for the solids control system mud tank, we will clear the drilling fluids density, mud tank dimension, equipments list, etc. information, then we will select proper model for our client.


For more information of GN vacuum degasser and mud agitator, pls contact with GN solids control.
