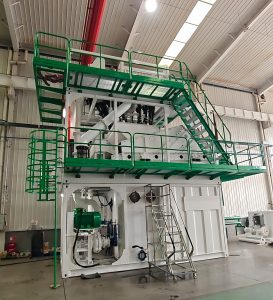

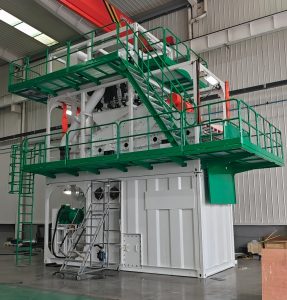

One complete set of GNTBM-500B Slurry Separation Plant are ready for shipment for Middle East TBM project. The technical specifications are as below:
Treating capacity: 500m3/h
Cut point: 15 ~30 microns
Mud cleaner: GNZS1836-2C, the bottom shaker model is GNZS1836 with 2pcs of 20 inches desander cones and 14pcs of 6 inch desilter cone, there are 2 units of 90KW feeding pump to feed the TBM slurry to desander cone and desilter cone, the lower deck screen area is 6.48m2 and upper deck screen area is 6.48m2.
The effective volume of the mud tank is 25m3.
The shipping dimension: the GNTBM-500B slurry separation plant can be shipped in 3 parts, the bottom part dimension is 6058x2438x2800mm, the middle part dimension is 6058x2438x3200mm, the top part is 4058x2438x1750mm.
Features of GNTBM-500B Slurry Separation Plant:
• Smaller footprint – ideal for confined urban construction sites
• Faster assembly and disassembly – reducing setup time
• Easier transportation – between job sites as projects progress
• Rapid deployment – minimizing downtime and maximizing productivity
The GNTBM-500B Slurry Separation Plant represents a significant advancement in TBM slurry management technology. With its 500 m³/h processing capacity, comprehensive three stage separation system, modular design, and adaptability to harsh Middle Eastern conditions, it provides tunneling contractors with a reliable, efficient, and cost effective solution for slurry shield tunneling operations.
As the Middle East continues to invest in transformative infrastructure projects, the GNTBM-500B slurry separation plant will play an essential role in enabling these ambitious undertakings while promoting environmental sustainability through effective slurry recycling and waste reduction
Except for modular design GNTBM-500B slurry separation plant, GN Solids Control also produce GNTBM-260B slurry separation plant and GNTBM-360B slurry separation plant, and also 800 m3/h, 1000 m3/h, 1500 m3/h slurry separation plant. If you need a customized and modularized TBM slurry separation plant, pls contact with GN solids sales.
