HDD Mud Mixing Tank and Mud Cleaning Unit for Middle East Customer

Recently one batch of HDD mud mixing tank and mud cleaning unit are ready for delivery to Middle East client.


Part one is HDD mud mixing tank, including Mud mixing hopper, centrifugal pump ( as mixing pump), centrifugal pump ( as transfer pump to transfer the mud after mixing to other tanks or HDD drilling machine), Mud agitator, mud mixing tank (20ft container size) with tank accessories and electrical control system and lighting.


Part two is HDD mud cleaning unit, including 1 set of 4 panel shale shaker, 1 set of linear motion mud cleaner, 2 unit of mud cleaner feeding pump, 1 set of mud tank (20ft container size) with tank accessories and electric control system, 1 set of lifting frame, lightings. The lifting frame is for convenient lifting of the shale shaker and mud cleaner at one time.
Part three is separate centrifugal pump with control panel.
It is a customized HDD mud recycling system for our client, we also have standard HDD mud recycling system for HDD, bored pile project, CBM, water well drilling and geothermal drilling, TBM, diamond core drilling, etc. applications.


We have 2 types of HDD mud recycling system for different requirement, one is economy mud recycling system, including GNMS-200K with 200gpm treating capacity, GNMS-500K with 500gpm treating capacity, GNMS-1000K with 1000gpm treating capacity.
The other type is self contained mud recycling system, including GNMS-200B with 200gpm treating capacity, GNMS-400B with 400gpm treating capacity, GNMS-600B with 600gpm treating capacity, GNMS-1000B with 1000 gpm treating capacity.
We can make the mud system as skid mounted mud system , it can be loaded on the container trailer for movement; it can be made as hydraulic jack up mud system and trailer mounted mud system.
If you need a customized solution for HDD mud recycling system, pls contact with GN solids control.

2 Sets GNOST-15 Oil Sludge Treatment System for Asia Customer

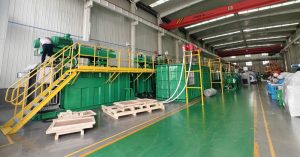

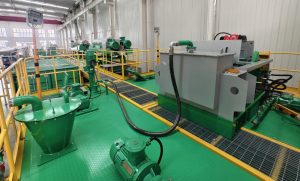

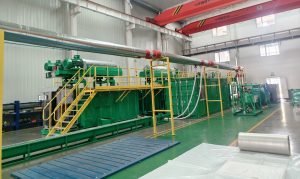

Recently 2 sets of GNOST-15 Oil Sludge Treatment System are ready for shipment to Asia customer. Each set of GNOST-15 Oil Sludge Treatment System including the components as below:


1. Feeding pump module, to pick up the oil sludge from waste pit and transfer to pre-mixing tank
2. Pre-mixing tank module, the function is to diluting, washing, heating and mixing of the oil sludge, so that the solids can be separated from the liquids in the further process of shale shaker, decanter centrifuge and three phase decanter centrifuge.


3. Coarse shale shaker separation module, to separate the coarse solids and reduce the solids content of the oil sludge, to protect the further decanter centrifuge, if the solids content is very high, the decanter centrifuge screw will be damaged and blocked easily.
4. GNLW-554 two phase decanter centrifuge module, the fine solids can be separated out from the decanter centrifuge by adding chemicals by chemical dosing unit
5. GNLWS-554 three phase separation decanter centrifuge module, to separate the fine solids, water and oil. The recovered oil can be reused or to be sold, the water can be reused in the circulation system or sent to waste water treatment facility, the solids discharged from shale shaker, two phase decanter centrifuge and three phase decanter centrifuge will be collected and sent to TDU for final treatment.


6. Chemical dosing unit module, to add chemicals in pre-mixing tank and 2 phase decanter centrifuge to improve the separation efficiency
7. Steam generator module, to provide hot steam to pre-mixing tank heating line , shale shaker separation tank module heating line, two phase decanter centrifuge tank heating line. There are electrical driven steam generator and diesel driven steam generator for option.
To get a customized proposal of the oil sludge treatment system, pls contact with GN solids sales.
