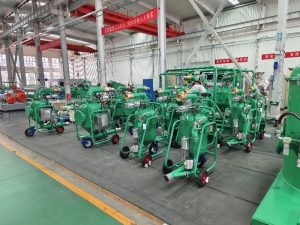

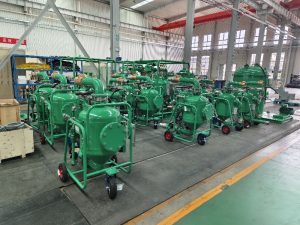

One batch of solids vacuum pump are ready for shipment to Africa oilfield service company.
The key Features & Advantages of GN solids vacuum pump including:
1. High Load & Strong Suction
Vacuum capacity up to 8m water column via high-efficiency Venturi device.
Handles high-solid-content materials (up to 80%) and high-specific-gravity fluids (e.g., oily sludge, cuttings).
2.Robust Design
Minimal wear parts → Low maintenance.
Compact structure suitable for harsh environments.
3.Performance Optimization
Shorter suction port-to-material distance improves efficiency.
Works best with high-fluidity materials (reduces clogging risks).
4.Typical Applications:
High-speed transfer of dense slurries (e.g., drilling cuttings, industrial sludge).
Ideal for oilfield, wastewater treatment, and industrial waste handling.
5. 100% aero dynamic, no need power supply, can be used in hazardous areas safely,explosion-proof;
Recommendation for use:
• Mining: Slurry, tailings, and waste transport.
• Oil & Gas: Offshore drilling cuttings, oily sludge recovery.
• Chemical/Construction: High-density waste, abrasive material handling.
• Wastewater Treatment: Thickened sludge, sediment removal.
Parts attached with solids vacuum pump:
1. Discharge tube
2. Suction port options:
2.1 including stainless steel feed pipe, mainly used to transfer sewage, mud, slurry, tail sludge and oily sludge fluids,etc;
2.2 inlet port with 10mm holes;
2.3 easy to move inlet with wheels, it is mainly used for sand treatment, fine sand, frac sand, distomaceous earth, animal feces, furnace ash, mud pit cleaning, hazardous waste recovery, sludge , tank bottom cleaning, carrier bilge cleaning, bulk tank;
2.4 plastic vacuum cleaner inlet type inlet or customized design.
2.5 Options for rubber pipe at slurry inlet, including PVC steel wire pipe, lined steel wired braded hose, wear resistant and lightweight hose for marine use
2.6 Screw two way feed port
3. Discharge port options
3.1 rotating unloading rack
3.2 discharge distribution collection box
3.3 buffer discharge box
For more information of solids vacuum pump, pls contact GN solids control.
