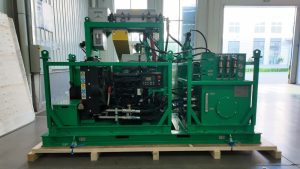

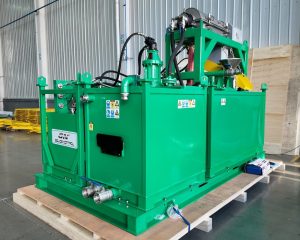

Recently one batch of core drilling hydraulic drive centrifuge system are ready for shipment. The main components consists of hydraulic drive centrifuge, hydraulic driving system, diesel engine, mud tank, feeding pump, mixing pump, mixing hopper. The hydraulic drive centrifuge system is specially designed for solids liquid separation of waste water in core drilling, in geological and mineral exploration, geological core drilling, the centrifuge separation system is commonly used for solids liquid separation of core drilling mud. It is operated without any electricity power supply, use the diesel engine to supply power. As a modular design hydraulic drive centrifuge unit, it is a lightweight design to meet the requirement for helicopter hoisting.
The features of GN hydraulic drive centrifuge system including:
1. Reduce drilling cost, including reduce drilling waste transportation cost, reduce water consumption, reduce the cost of using chemicals, protect drill bits and mud pump and reduce the wear and tear of these drilling machine
2. Environmental friendly, reduce soil contamination , water reuse to reduce water consumption, reduce drilling waste disposal cost
3. Improve drilling efficiency, skid mounted or trailed mounted design, lightweight, can meet the requirement of helicopter lifting
The technical parameters of the main equipments:

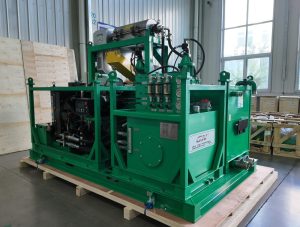

1. Mini decanter centrifuge: GNLW223D, GNLW223D-FHD,GNLW224D-VFD for option, GNLW223D-FHD is fully hydraulic drive centrifuge, bowl diameter is 9 inch, bowl length is 670mm, max treating capacity is 130 L/min, the typical treating capacity is 100L /min, the typical bowl speed is 0 ~3800rpm, the max G force is 2492G, the typical speed is 1777G.
2. Cutting point: 2 ~5 microns
3. Treating capacity of the whole hydraulic drive centrifuge unit: 50~ 130 L/min
4. Driving type: diesel engine drive coupler( including oil source, motor, diesel engine 3ea, control system and hydraulic pipelines) and hydraulic drive system
5. Feeding pump and discharge pump
