One batch of mini decanter centrifuge and drilling mud cleaning equipments are ready for shipment to Europe client. The equipments list including:

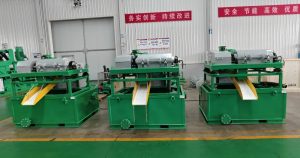

4 sets of GNLW223D drilling mud mini decanter centrifuge packages, it consists of 9 inch diameter GNLW223D mini decanter centrifuge and fluids catching tank under the decanter centrifuge. GNLW223D decanter centrifuge is the popular model decanter centrifuge which has been widely used for diamond core drilling waste water treatment, the function is for water recovery to reduce the water consumption, and reduce the drilling waste, which is for environmental friendly and reduce the waste treatment cost. We have 2 models mini decanter centrifuge for option, GNLW223D is with max speed 4500rpm, typical bowl speed 3800rpm, max G force is 2492G, the bowl diameter is 9 inch, the bowl length is 26.4 inch; the superior configuration model is GNLW224-VFD, the bowl diameter is 9 inch, the bowl length is 36.4 inch, the max bowl speed is 5000rpm, the typical bowl speed is 0~ 4500rpm, the max G force is 3200G, the typical G force is 2492G, the water can be treated better and stay longer time inside the bowl, the treated water can be cleaner and discharged solids can be drier.

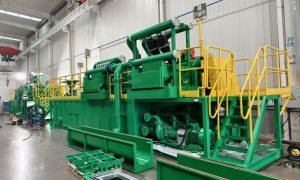

2 sets of GNMS-600B drilling mud cleaning equipments, the technical specification is as below:
The treating capacity is up to 600gpm, the separation cut point is 25 microns, the mud cleaner used is GNZJ597K-12N which consists of 12ea of 4 inch desilter cone with double deck bottom shale shaker, the upper screen area is 2.05m2, the bottom screen area is 2.73m2, the tank effective volume is 15m3, and the total power consumption is 71.65KW.
2 sets of GNMS-1000B drilling mud cleaning equipments, the treating capacity is up to 1000gpm, the mud cleaning system is suitable for standard container shipment.
