Recently 4 sets of GN mud cleaning system are ready for delivery to Europe HDD company, including 3 sets of GNMS-200C HDD mud recycling system with treating capacity 200gpm, 1 set of GNMS-1500 HDD mud recycling system with treating capacity 1500gpm.

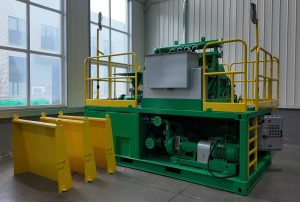

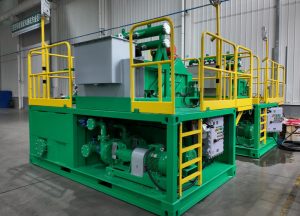

GNMS-200C HDD mud recycling system is a 200gpm self contained mud recycling system, the cut point is 25 microns, the total volume is 5m3. It is a 2 phase cleaning mud system, the first phase cleaning is double deck shale shaker bottom screen for coarse solids separation, the second phase cleaning is 4pcs of 4 inch desilter cone with mud cleaner. 2 units of centrifugal pumps in same model as desilter feeding pump and a mud mixing pump.

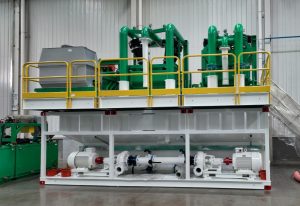

GNMS-1500C HDD mud recycling system is a customized 1500gpm mud recycling system, the cut point is 25 microns. Except for high configuration mud recycling system, GN solids control also produce compact design mud cleaning unit for trenchless HDD project, Bored pile project and micro TBM project, diamond core drilling, water well drilling project. GNMS-200K mud cleaning unit with 200gpm capacity, GNMS-500K with 500gpm capacity, GNMS-1000K with 1000gpm capacity.
Compared with the compact design mud recycling system and the self contained mud recycling system, the table below breaks down the key differences between the two types of systems:
| Feature | Compact design mud cleaning unit | Self contained mud recycling system |
| Primary function | Focus on cleaning | Performs mud cleaning, mixing and storage |
| System complexity | Simpler, often a two stage separation process | More complex, typically a 4 stage separation process for finer solids separation |
| Footprint | Smaller, skid mounted design for easy transportation | Larger, skid mounted or trailer mounted with bigger tanks for greater fluids volume |
| Application | For smaller jobs, supporting smaller drill rig | Suited for middle sized to large projects requiring high volume, fine cleaned mud. |
